Stilo70 Modular Staircase

£3,600.00

The Stilo70 Modular Staircase is a clever design with a central interlocking spine which can provide a straight, L-shaped or U-shaped winder staircase. With powder coated steel vertical spindles, solid chunky beech treads (40mm thick!) and handrail, and beautifully designed sleek central spine, the Stilo staircase is extremely robust and practical.

Category: , ,
Tags: , , , ,

Description

Description

The Stilo 70 Modular Staircase selfbuild kit is a clever design with a central interlocking spine which can provide a straight, L-shaped or U-shaped winder staircase. With powder coated steel vertical spindles and a sleek central spine, the Stilo staircase is extremely robust. The solid beech treads combine perfectly with your choice of steel colour from White, Black or Grey. The Stilo modular staircase is also available in two widths to suit every project – 700mm, and 830mm and this page is for the Stilo70 Modular Staircase. If you’d like to choose the Stilo83 Modular Staircase, please click here.

Carefully made to order and delivered to your door in kit format for straightforward self-assembly by any competent DIYer or tradesperson. Just choose the format for your project (straight, L or U) and then your colour choices and then it’s as easy as that! Perfect for selfbuilders.

Stilo Modular Open Staircase Description

ManufacturerEhleva, Mobirolo, Italy
Model NameStilo70 Modular Staircase Made To Order
FormatModular / Linear / Open / Winder | Kit format (self assembly)
RotationStraight, L shape or U shape*
Number of Treads12 in the kit
Number of Risers13 (suitable for floor to floor heights 236-2284cm)
Tread Type40mm thick Solid Beech (Natural or Chestnut stain)
Balustrade TypePowder Coated Steel round balusters
Handrail TypeSolid Beech Handrail
Installation VideoYes – in the Knowledge Centre of our website
Warranty PeriodTwo Years

N.B. PLEASE NOTE: It is your responsibility to ensure that any Local Authority approvals necessary have been obtained. This will vary according to your application and we advise you to always check before going ahead with a purchase.

*By adding one or two quarter turns in any position in the staircase, this provides 76 different configurations.

*The configurations available on the Stilo Modular Staircase are designed to satisfy most European regulations. However, please check with your local Building Control that your chosen configuration is acceptable to them. The balustrading on the Stilo Modular Stair Kit should comply with the 100mm gap rule. Please contact us if you would like further advice. You’ll find more information on the Technical Tab.

pdf-icon

Click here for details of how to work out any Stilo components you may need for your project – extra treads, external railing or additional staircase balustrading etc.

Beech Wood Treads and Handrail with colour options. Powder coated steel with colour choices.

Fixing design details are in dark Grey for all the White, Black and Grey colour options.

Delivery timescales are approx 4-5 weeks. Delivery to UK Mainland and customs processing charges are included in the price.

Technical

Stilo 70 :: 700mm (27.5″) with 1 handrail
Staircase Width :: 785mm (30.75″) with 2 handrails

Individual Tread RISE :: adjustable from 180mm to 235mm
Individual Tread GOING :: adjustable from 200mm to 230mm

Stilo83:: 830mm (32.6″) clear tread width
Staircase Width :: 872mm (34.4″) with 1 handrail
Staircase width :: 915mm (36″) with 2 handrails

Individual Tread RISE :: adjustable from 180mm to 235mm
Individual Tread GOING :: adjustable from 220mm to 250mm

All Standard Kits suit :: floor to floor heights 2365mm – 3025mm*

The Stilo Modular Staircase is designed to have a shadow gap of up to 60mm between the staircase and the adjoining wall.

pdf-iconClick here for details of how to work out any Stilo components you may need for your project – extra treads or additional staircase balustrading etc.For higher floor to floor heights, use additional tread kits and components as shown on the Accessories pages.

*The configurations available on the Stilo Modular Staircase are designed to satisfy most European regulations. However, please check with your local Building Control that your chosen configuration is acceptable to them. Please contact us if you would like further advice.

The Stilo Modular Staircase kit can be installed with a clockwise or anti-clockwise turn using the quarter turn set/s of treads. You decide when you fit the staircase! You’ll find diagrams on the layouts on the Layout Options – Modular tab.

Generally, it is best to form the opening for the staircase at least as big as the staircase layout itself.

The standard kit has 13 risers (12 treads) and the tread rise is adjustable from 180mm to 235mm, although UK regulations have a maximum tread rise of 220mm. This means that the standard kit will suit floor to floor heights of up to 3025mm (or 2860mm to comply with UK Building Regulations for maximum tread rise). If your floor to floor height is higher than this, you simply need to add additional tread kits as required. If your floor to floor height is lower than this, you use less treads.

The individual tread rise and going is achieved by adjusting the central tread support modules to provide your overall correct staircase height. These are supplied in the kit, together with all fixings and fittings required plus clear installation instructions and an installation DVD!

The going or depth of the treads is adjustable on the Stilo  staircase from 200mm to 230mm (for the 700mm wide version) and from 220mm to 250mm for the 830mm wide version – but the UK Building Regulations require a minimum tread going of 220mm and your chosen configuration should bear this in mind.

Powder coated steel riserbars are available as an accessory kit to fit between the open treads to satisfy the requirement for the gap to be less than 100mm.

pdf-icon Click here for details of how to work out any Stilo components you may need for your project – extra treads or additional staircase balustrading etc.

Don’t forget that the Stilo Modular staircase is made in Italy and some of the suggested configurations may be outside of the UK Building Regulations. If you have any queries on this, please do not hesitate to contact us for advice.



Layout Options – Modular

Layout Options

The clever modular design of the Stilo and the Vector modular staircases allows you to drop the 3 treads, which form the quarter turn, anywhere in the run of the staircase offering an amazing 76 different configurations for each width of staircase.

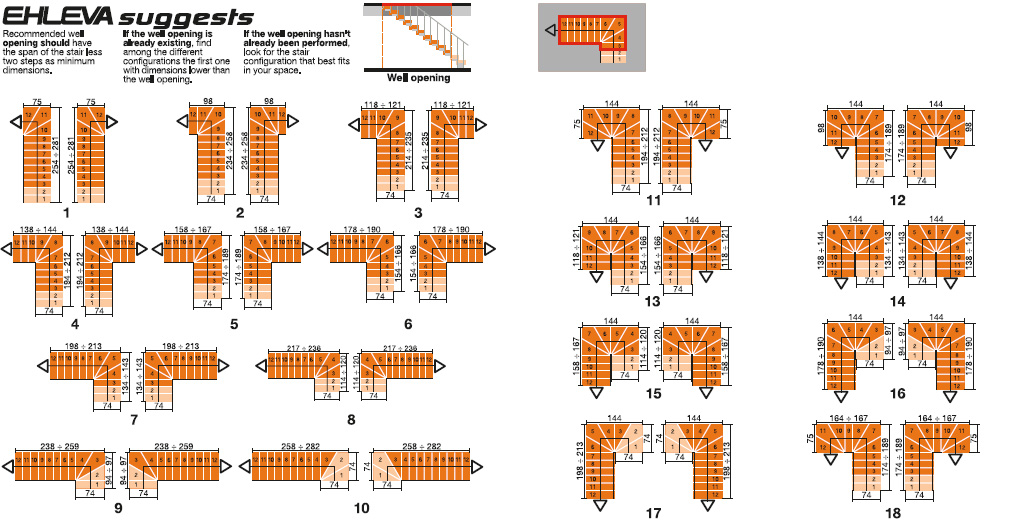

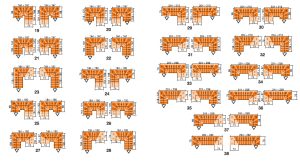

Stilo and Vector 70

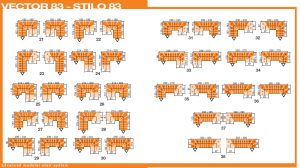

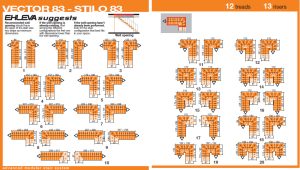

Stilo and Vector 83
